The SOFAR channel is a deep-ocean layer that guides low-frequency sound over very long distances. Its full name is the Sound Fixing and Ranging channel. Sound bends toward the depth where its speed is lowest, so waves released near that axis can remain trapped instead of quickly escaping toward the surface or seafloor.
The channel is not a hollow passage or a fixed pipe. It is a region created by the way temperature and pressure change the speed of sound through seawater. Its depth varies with latitude and local ocean conditions and in high latitudes the sound-speed minimum can approach the surface.
Why sound bends toward the channel
Sound speed in seawater depends mainly on temperature, pressure and salinity. Warm water transmits sound faster than cold water. Increasing pressure with depth also raises sound speed. In much of the open ocean, cooling initially dominates as depth increases, so sound speed falls below the surface.
At greater depth, temperature changes less while pressure keeps increasing. Sound speed then rises again. The resulting profile has a minimum between the faster water above and below. NOAA’s ocean-acoustics reference places the deep sound-channel axis commonly around 800 to 1,200 meters in low and middle latitudes, while stressing that its position changes geographically.
Refraction keeps redirecting sound toward slower water. A ray traveling upward into a faster layer bends back down, while one traveling downward into pressure-accelerated water bends upward. The repeated curves can confine energy near the minimum without requiring reflection from a solid boundary.
How far sound can travel
Low-frequency sounds lose relatively little energy when they remain in the deep channel. NOAA says signals may cross hundreds or thousands of miles and some have been detected across entire ocean basins. Distance depends on frequency, source depth, ocean structure and background noise rather than one guaranteed range.
The channel works best for long wavelengths. Higher-frequency sound is absorbed more rapidly by seawater. At sufficiently low frequency, however, NOAA’s technical reference explains that the wavelength can become too large for the layer to trap. Seafloor ridges, islands and changing water masses also distort or block paths.
Transmission loss includes geometric spreading and absorption. The channel reduces the escape of energy into the upper ocean and seabed, but it cannot eliminate either process. Receivers detect a weakened signal by isolating its frequency and timing from the surrounding soundscape.
Travel time is substantial even though sound moves through seawater at roughly 1,500 meters per second, far faster than through air. Oceanographers can use arrival times at separated hydrophones to estimate where a signal originated. The result requires an accurate model of the path because temperature and pressure alter speed along the route.
Long range does not mean perfect transmission. A signal spreads, encounters internal waves and competes with shipping, weather, animals and geological noise. Hydrophone arrays improve detection by comparing timing and direction across multiple sensors.
The wartime experiment behind SOFAR
Scientists Maurice Ewing and J. Lamar Worzel investigated the channel during World War II because it offered a possible way to locate people or equipment lost at sea. In a pivotal test, one vessel detonated a small charge at the channel depth while another listened about 900 miles away.
NOAA’s history of the SOFAR experiment records that the distant signal ended so sharply that observers could identify its arrival. The work established that deep-ocean sound could remain coherent over a continental-scale distance.
Later rescue concepts used devices called SOFAR bombs, designed to implode or explode at a prescribed depth. Networks of listening stations could compare arrival times. Satellite beacons and modern positioning systems eventually replaced many rescue uses, but the physics became central to ocean acoustics.
The original name reflects location as much as listening. If several stations record the same pulse, differences in arrival time constrain the source position. The calculation is similar in principle to locating an earthquake, though the ocean sound-speed field must be modeled along every path.
What hydrophones hear in the channel

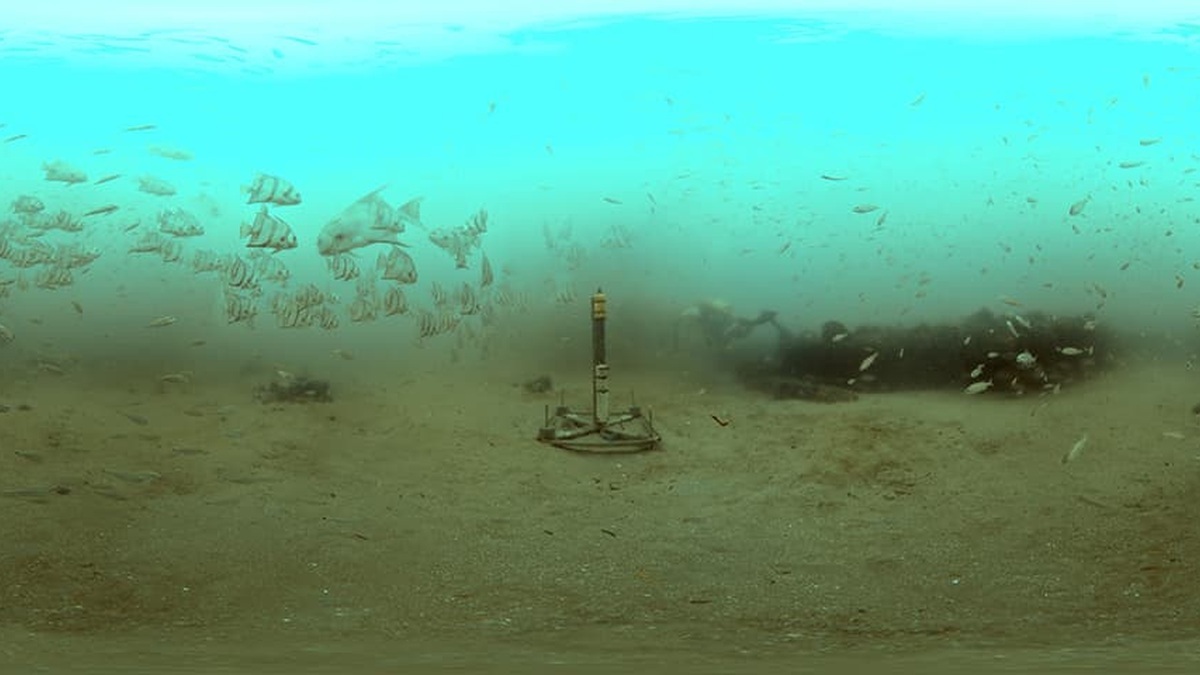

Hydrophones near the axis can record earthquakes, submarine volcanic activity, iceberg cracking, whales and human activity. Each source has its own frequency pattern and time history. Analysts compare those signatures with location data and other observations before assigning a cause.
One famous example was the 1997 sound called the Bloop. NOAA’s later comparisons connected it with large icebergs fracturing near Antarctica, a history covered in Argo’s account of the Pacific hydrophone detection. The episode shows why a long detection range can expand the search area as well as the evidence.
Passive acoustics listens without transmitting a pulse. It can monitor remote ocean regions continuously, provided researchers account for station sensitivity and changing propagation. Active sonar sends sound and measures echoes, serving different navigation, mapping or research purposes.
Acoustic receivers also support instruments that track currents. Woods Hole’s RAFOS floats listen for timed sound sources and use their arrival times to calculate position after drifting below the surface. Repeated positions reveal the movement of water that satellites cannot directly follow at depth.
Whales, ships and the ocean soundscape
Some large whales produce low-frequency calls capable of entering favorable propagation layers. The channel can extend communication range, although actual range changes with species, call frequency, depth and ambient conditions. Animals do not need to understand the channel as a geometric object to benefit from its physics.
Human noise also travels through the ocean. Commercial ships, seismic surveys and naval activity add sound across different frequencies. NOAA notes that increased noise can mask signals animals use for communication, navigation and finding food. The effect depends on overlap in time, place and frequency rather than noise level alone.
Researchers separate natural variation from human influence with long records, calibrated instruments and models of propagation. The layered structure of the ocean provides essential context because the same source can be faint or far-reaching depending on its depth relative to the channel.
Frequency matters to masking. A distant low-frequency ship can overlap a baleen whale call, while a higher-frequency toothed-whale click behaves differently. Soundscape studies compare energy within specific bands rather than treating all underwater noise as one interchangeable signal.
Why the channel moves
Seasonal heating changes the upper sound-speed profile. Currents transport water masses with different temperatures and salinities, while eddies and fronts tilt acoustic layers. Near the poles, cold surface water reduces the temperature-driven contrast, bringing the minimum much closer to the top.
The SOFAR axis is therefore mapped, not assumed. Research vessels lower instruments that measure conductivity, temperature and depth. Those observations allow scientists to calculate sound speed and predict paths for a particular place and time.
Bathymetry matters too. A channel crossing a mid-ocean ridge may be partially blocked, while deep passages can transmit sound between basins. Argo’s guide to ocean-floor topography explains the ridges, trenches and plains beneath these acoustic routes.
Using the channel in practice
Climate-scale shifts in ocean temperature can alter predicted travel times by small amounts. Repeated acoustic measurements have therefore been explored as one way to observe basin-wide heat change. Interpreting them demands accurate source timing and independent ocean data, since currents and mesoscale eddies also move the path.
For any application, the channel is a calculated feature of the water column. Its axis and performance must be measured for the ocean that exists at that moment rather than copied from a textbook profile.
The core idea remains straightforward: a minimum in sound speed acts as a natural waveguide. Everything useful about SOFAR, from distant whale calls to basin-scale monitoring, follows from how that moving minimum bends low-frequency energy back toward itself.
